• 4 x 340 W LED lamps / 4 x 1000 W metal handle lamps
• 4 Heavy duty stabilizers with level bubble
• Oil & coolant drain for serviceability
• User friendly control panel
• Independent circuit breakers
• Auxiliary power output
Additional
• Emergency stop button
• DC electric winch
• Ground connection
• Engine block heaters
• Spark arrestors
• Compact kubota Z482. Tier 4 final engine

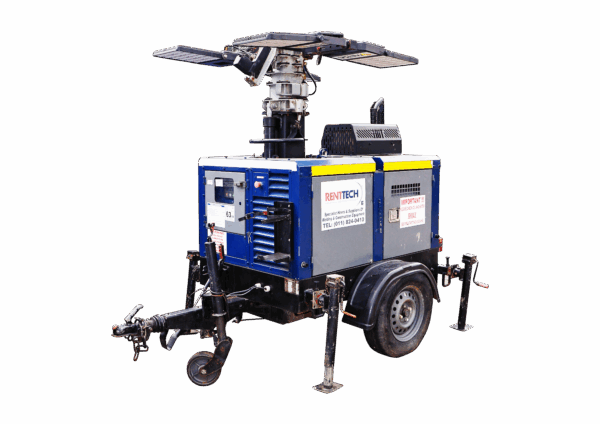

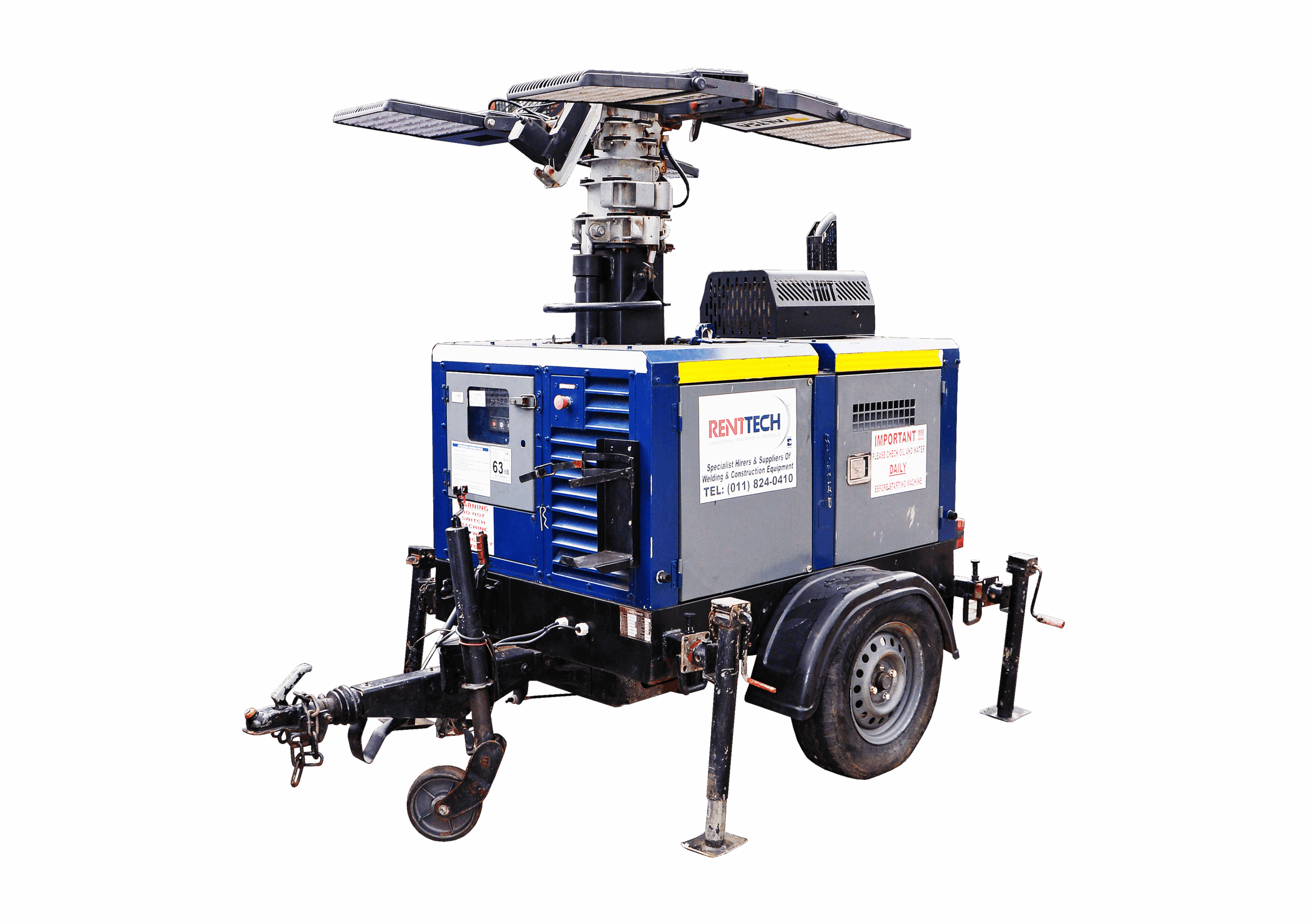

| LIGHTING TOWER LTK-H7 | LIGHTING LTK-H7 | ||
| FREQUENCY (HZ)
RATED VOLTAGE (V) 230 RATED POWER (KW) 6 MAX.OUTPUT (KW) 7 MAST HEIGHT (M) 9 POWER OUTLET SOCKETS FUEL CONSUMPTION (L/H) FUEL TANK CAPACITY (L) 40 FUEL TANK HOURS 23 NOISE LEVEL (7M) DB (A) 74 WEIGHT (KG) 1630 DIMENSION IN OPERATION (L X W X H) MM DIMENSION IN TRANSPORT (L X W X H) MM DISASSEMBLY LOAD CAPACITY IN 20FT (UNITS) DISASSEMBLY LOAD CAPACITY IN 40HQ (UNITS) DISASSEMBLY |
50
230 6 7 9 2*16A 1.7 40 23 74 1630 2400 x 1800 x 9000
2400 x 1800 x 2540
/
4 |
TYPE OF LIGHTS
NUMBER & POWER OF THE LIGHTS MAST LIGHTING & EXTENSION
LIGHT ANGLE TURNING LUMINOUS FLUX
ILLUM AREA (S LUX MIN) M2 LAMPS ROTATION PROTECTION GLASS COLOR TEMPERATURE |
LED
4*350 W Hydraulic operation Electric 4*110000 = 440000 3900 75° IP33 4200K |
| ENGINE LTK-H7 | ALTTRNATOR LTK-H7 | ||
| ENGINE BRAND
ENGINE MODEL SPEED(RPM) PRIME POWER (KW) COOLING SYSTEM OIL CAPACITY 5.1 |
Kubota
D110s-E2BG 1500 8.4 Water-cooled 5.1 |
ALTERNATOR BRAND
ALTERNATOR MODEL CONTINUED POWER (KVA) EXCITATION MODE
ALTERNATOR INSULATION PROTECTION GRADE |
Meccalte
LT3N-130/4 7 Capacitor exciter H IP23 |
| MAST LTK-H7 | TRAILER LTK-H7 | ||
| ALTERNATOR BRAND
ALTERNATOR MODEL CONTINUED POWER (KVA) EXCITATION MODE ALTERNATOR INSULATION PROTECTION GRADE |
Meccalte
LT3N-130/4 7 Capacitor exciter H IP23 |
BRAKING SYSTEM
HITCH
TIRE RIM SIZE SPEED |
Parking braking
Ball type / O ring option 18S / R14 <80km/h |
