GENSETS 1250KVA – 2250KVA

Interested in a Product?

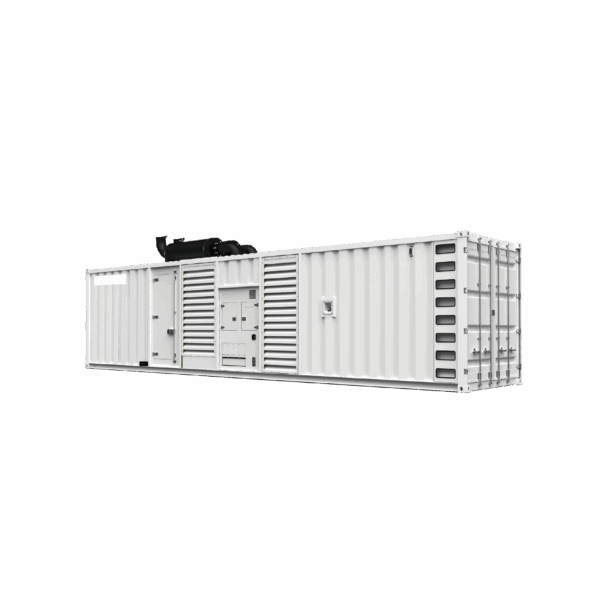

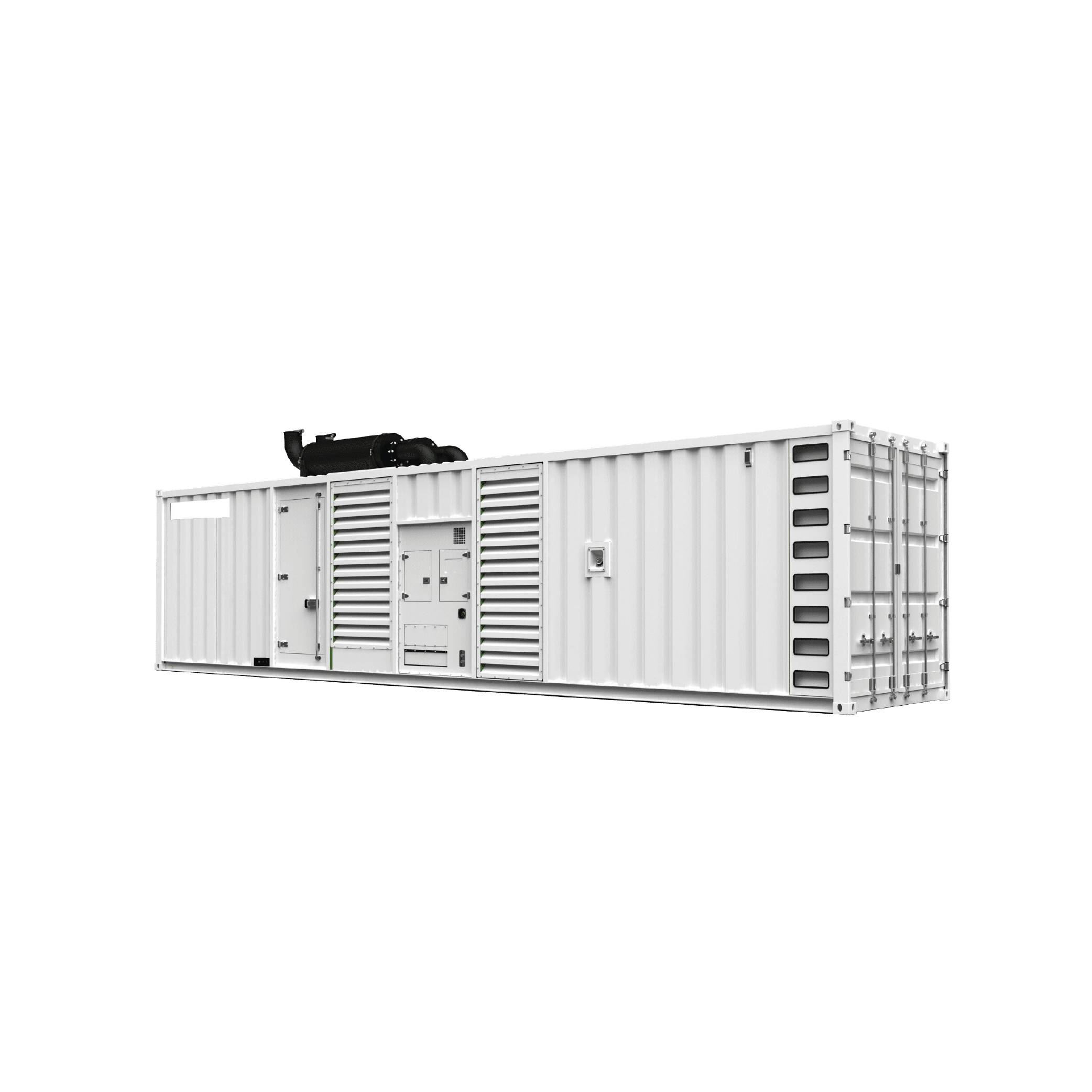

• Fitted in new converted 12m marine containers
• All units lined with sound proof material
• Synchronized units available with up to 16 units
interconnected and running simultaneously
STANDARD DRIVE COMBINATIONS:
• UK Perkins / Leroy Somer
• Cummins / Newage Stamford
Various trailer fitted configurations available

Model	kVA	Engine	Dimensions (mm)	Alternator	Tank (L)	Power (kW)	Weight (kg)	Noise (dB)
Semi silent	tba	F3L912 – Air cooled	1710x975x1410	PI144E	60	30	850	78
GMS40DR	tba	F4L912 – Air cooled	2010x975x1410	PI144K	60	40	953	78
GMS42CS	9	Cummins 4BT3.9-G1	2668x1100x1708	PI144K	280	43	1423	71
GMS60CS	9.3	Cummins 4BTA3.9-G2	2688x1112x1749	UCI224E	360	60	1563	72
GMS100CS	22	Cummins 6BT5.9-G1	3162x1122x1834	UC1274C	360	100	2056	74
GMS175CS	40	Cummins 6CTA8.3G2	3442x1300x1851	UCII274C	500	175	2618	74
GMS200CS	45	Cummins 6CTAA8.3-G2	3592x1300x1840	UCI274H	510	200	2669	75
GMS250CS	53	Cummins 6LTAA8.9-G2	3663x1362x1958	UCD1274K	500	250	2884	76
GMS312CS	68	Cummins NTA855-G1	4242x1400x2280	HC1444ES	660	312	4546	78
GMS350CS	75.3	Cummins NTA855-G4	4450x1500x2200	HCI444E	800	350	4940	78
WPS500S	tba	Perkins 2506C-E15TAG2	4512x1543x2553	HCI544D	1020	500	5228	78
WPS1000S	tba	Perkins 4008TAG-2A	6058x2438x2728	LVI634E	1150	1000	11760	tba
WPS1500S	tba	Perkins 4012-4+6TAG-2A	12192x2438x3150	PI734C	2000	1500	20220	tba
WEPS2250S	tba	Perkins 4106-61TRG3	12192x2428x3150	PI734G	2000	2250	20650	tba
