MIG/MAG INVERTER – SYNERGIC 500

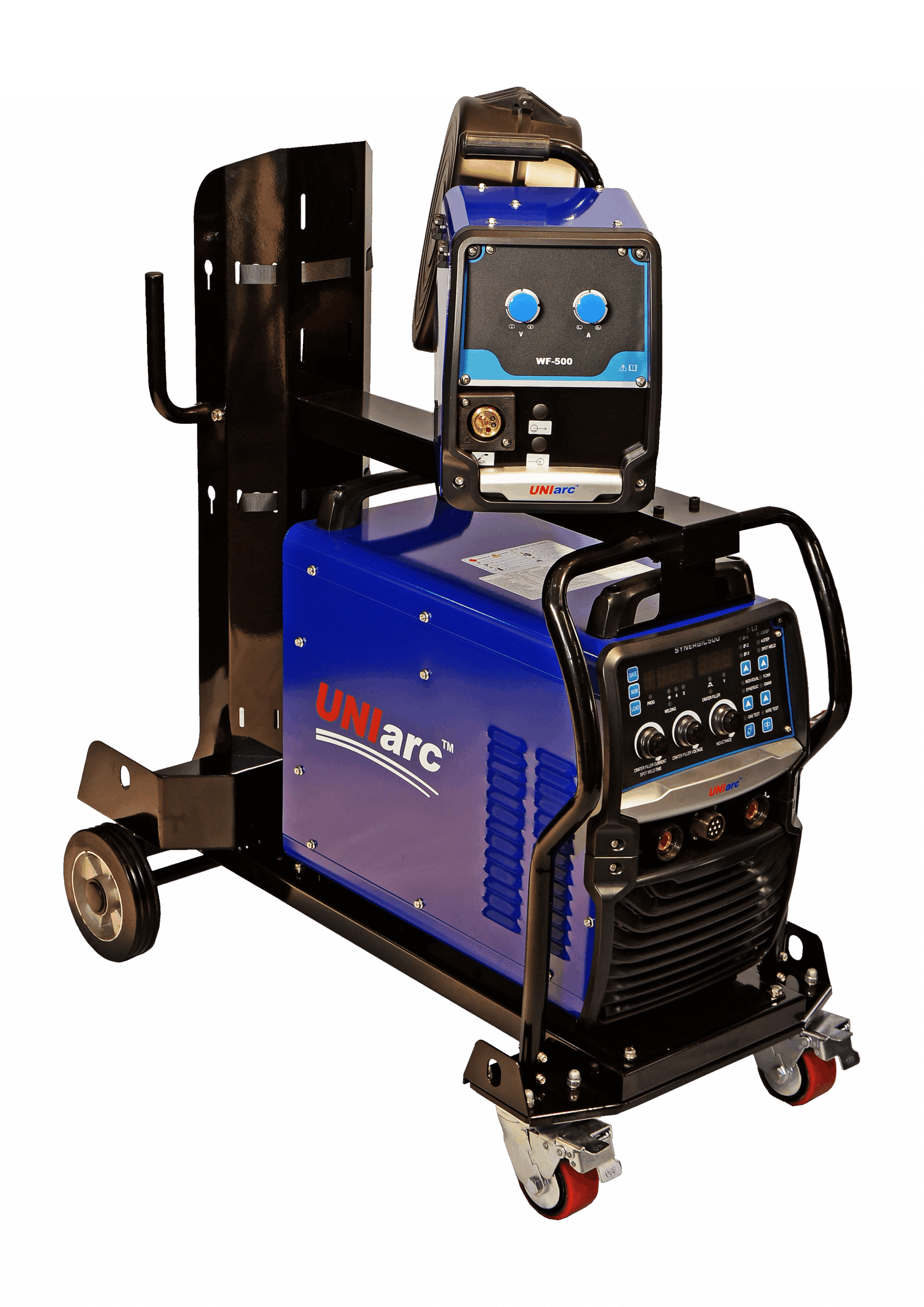

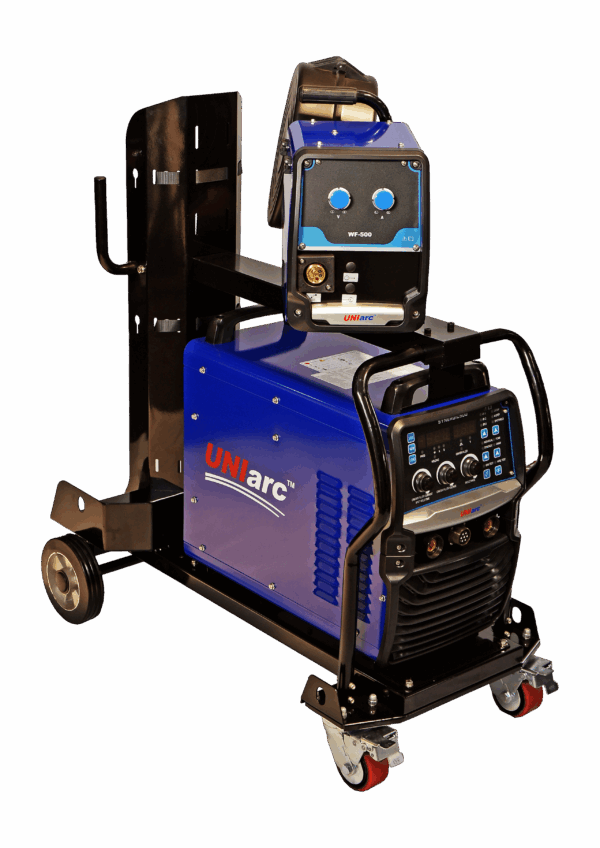

SYNERGIC 500 (380V/525V AUTO SELECT)
Product code: 00042925 (Air-cooled)

The SYNERGIC 500 is a fully digital synergic mig system delivering powerful versatility at 500 Amps. This unit offers simplistic operations and exceptional welding quality for the most demanding weld applications. The auto-select input voltage, ranging from 380V-525V makes it ideal for both factory or mining environments. This system boasts a 4-roll wire feeder with 10 memory slots to save weld settings, as well as a robust undercarriage and 3-year warranty.

Interested in a Product?

• 60% duty cycle @ 500AMPS @40°C for severe duty applications
• Arc ignition and cratefill settings
• 10 programmable memory slots to save your weld settings
• 2 step,4 step, and spot-welding torch controls
• 4 roll wirefeeder
• Arc length compensation to assist a welder in producing consistent results
• Intergrated trolley design for maneuverability around a workshop
• Thermal overload protection
• Generator compatible
• Suitable for long distance welding up to 50 meters

• Maintenance and repair
• Process plant construction
• Heavy fabrication
• Mining
• Shipbuilding
• Petrochemical
• Rail transit

GMAW / FCAW SS / FCAW-GS / MCAW

SYNEGIC 500
Power supply3 Phase, 380/525VAC, 50Hz
Rated input capacity (KVA)25
Rated input current (A)28A@380V                        29A@525V
Rated duty cycle60%
Range of welding current (A)60-500
Range of welding voltage (V)17-39
Open circuit voltage (CV)90V
Efficiency89%
Power factor0.87
Wire dimension0.1.0-1.687
CO2/MAG Gas flow rate15-20L/min
Insulation classH
Dimension667 x 350 x 575
Weight55kg
