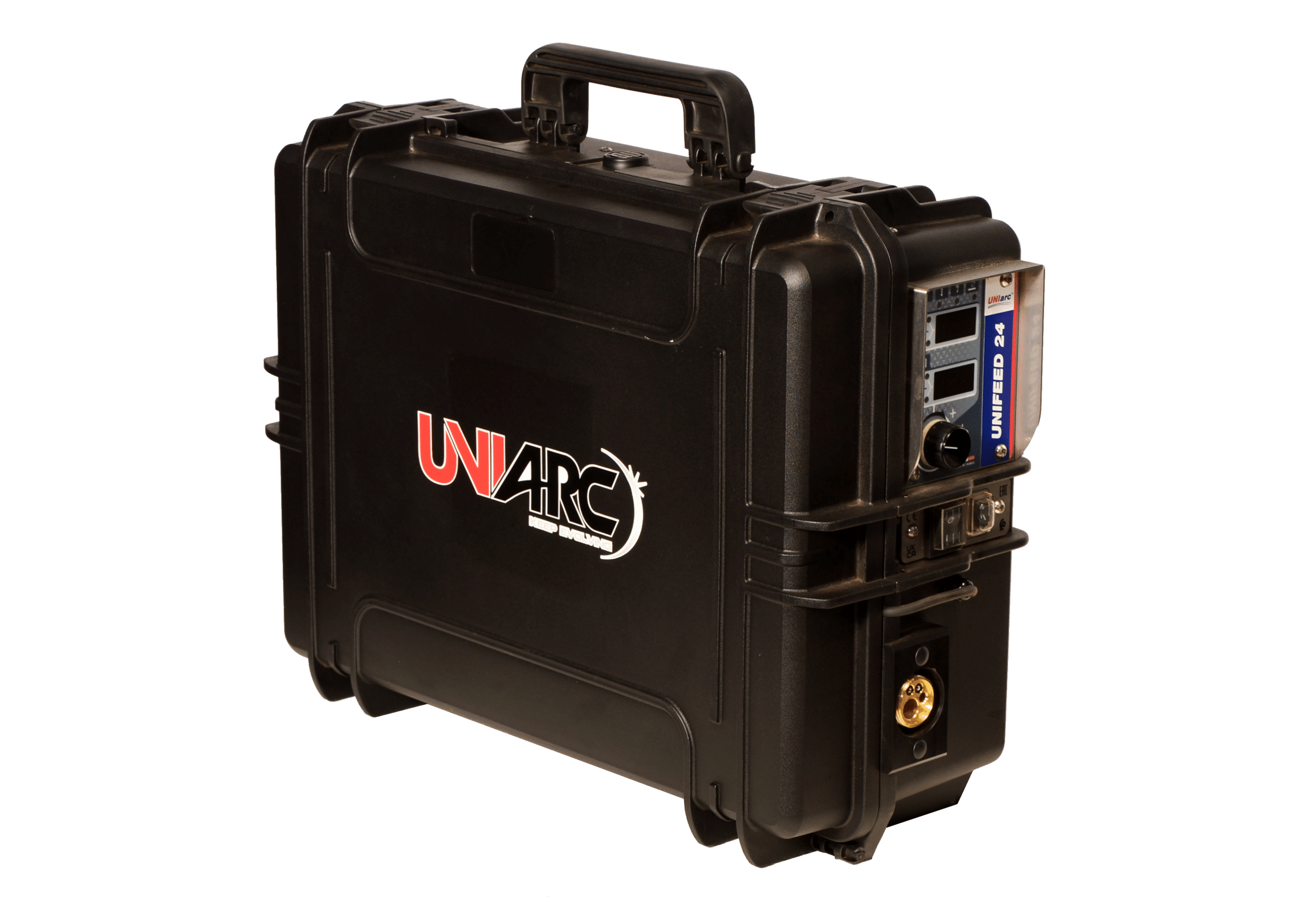

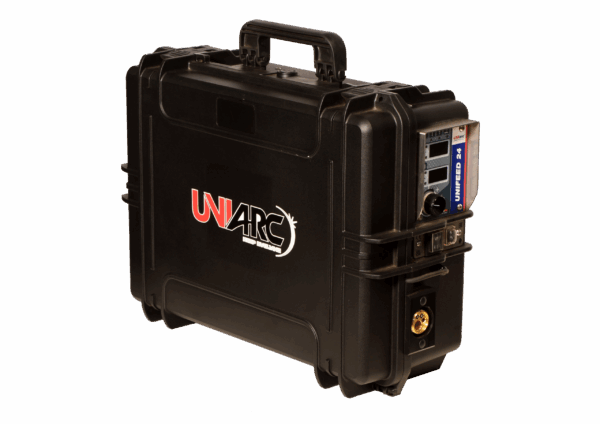

WIRE FEEDER – UNIFEED24

UNIFEED24
Product code: 00041427

The UNIFEED 24 is the latest wire feeder in the UNIARC offering. This voltage sensing wire feeder is designed for harsh working conditions and high production environments ideal for construction, mining and pipeline sites. Constructed out of a hard-wearing plastic composite this robust feeder offers both CC as well CV modes. This unit is compatible with most recognized engine driven welders
with a wire capacity up to 2.4mm FCAW wire. Driven by a 4-roll drive system this system has enough torque for high production environments without wire slippage or wire deforming. Torch control includes 2 step and 4 step control and also has cold wire feed and gas purge capabilities. Recessed digital displays ensures visibility of your weld settings in low light conditions.

Interested in a Product?

• Voltage sensing wire feeder
• 4 roll drive system
• High production environments without wire slippage or wire deforming
• Auto venting sealed wire compartment
• 2 step and 4 step control
• Cold wire feed
• Gas purge capabilities
• Recessed digital displays

• Construction
• Mining
• Pipeline
• Ship building

GMAW / FCAW-SS / FCAW-GS

WIRE FEEDER
Power supply voltage (DC) – Genrator output U, = 17 VDC - 113 VDC      U, = 30 VAC - 80 VAC PHOTOELECTRIC CODER FEEDER +

SEPERATE CHIP HIGH-SPEED LOOP CONTROL

Motor speed 1-24 M/MIN   39 -945 INCH/MIN   30-80HZ
Drive roller type C (X2)   E (X2)   0.93
Torch connector EURO
Supported wire reels 200MM / 300MM
Supported wires FE : 0.6MM - 1.6MM

SS : 0.8MM - 1.6MM

AL : 1.0MM - 1.6MM
CORED : 0.9MM - 2.4MM 30-500A

Duty cycle at 40°C (10 MIN)* STANDARD EN60974-1. 60% 425A 100% 300A 0.8/ 1.0/ 1.2/ 1.6/ SP MM
Protection gas (PMAX = 0,5 MPA / 5 BAR/ 72,52 PSI) DEPENDING ON THE MATERIAL TO WELD
Functioning temperature -10°C / +40°C
Storage temperature -20°C +55°C
Protection level IP23
Dimensions 600 X 220 X 430 MM
Weight 14,6KG
