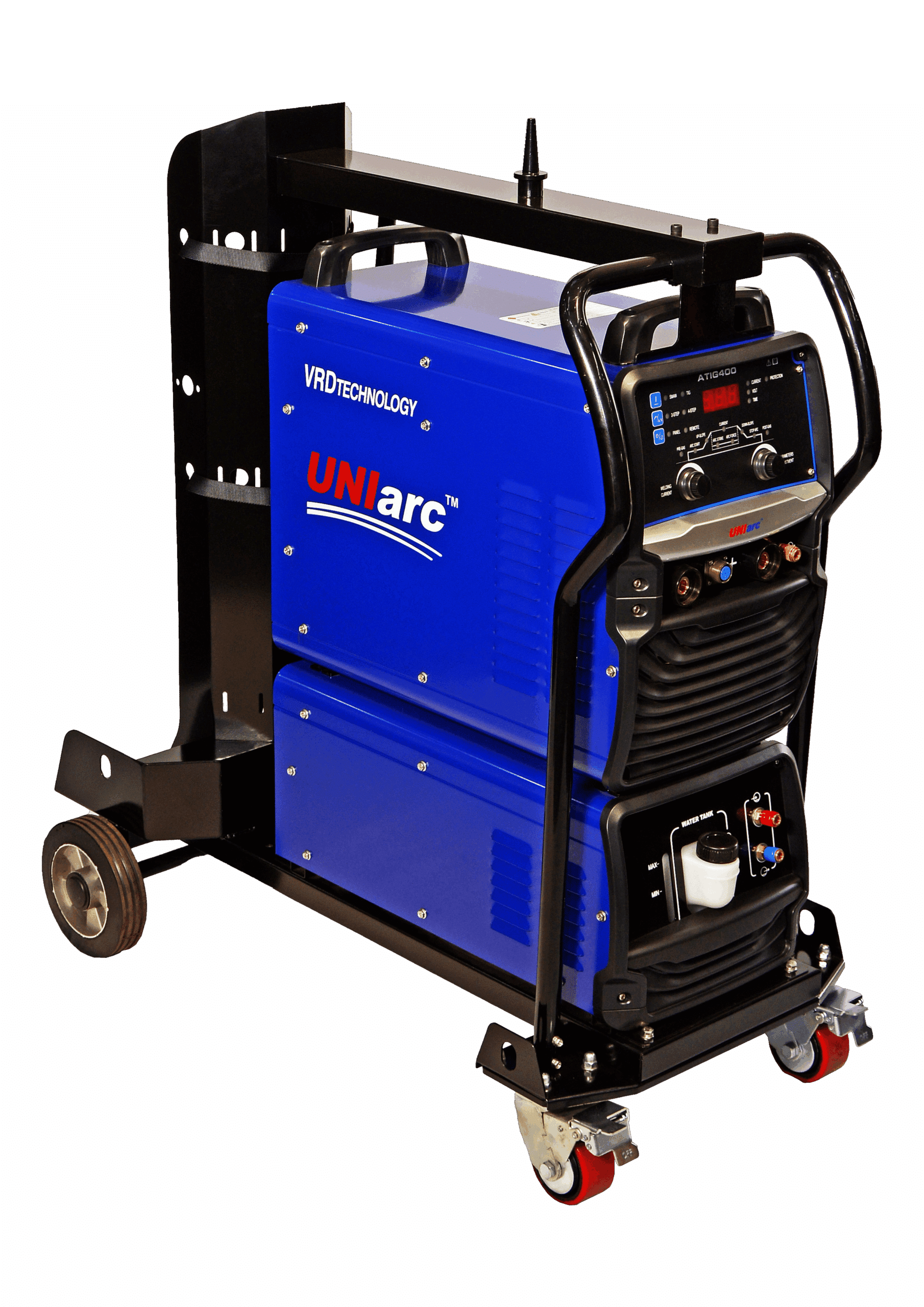

The ATIG 400 is a digital inverter offering high frequency DC Tig or lift start Tig for those critical GTAW applications. Ideally suited for both site and fabrication applications, this machine is easy to use and produces exceptional weld quality and unmatched ARC stability with a 60% duty cycle@400Amps @40°C, as well as multiple input voltage of 380V/525V. This unit is built for construction and maintenance sites and boasts a 3 year warranty to match.
• DC output
• 2 step /4 step / spot welding
• Arc force adjustment
• Self-diagnostic function with error code display
• High frequency arc start
• Lift start TIG
• Hand / Foot control
• 60% duty cycle @ 400 AMPS
• Ramp up and crate fill capabilities
• Maintenance and repair
• Process plant construction
• Pipeline industry
• Construction
• Fabrication
• Mining
• Shipbuilding
• Petrochemical
GTAW / SMAW / GOUGING
| ATIG 400 | |
| Welding type | SMAW/GTAW |
| Input voltage (VAC) | 380 / 525 |
| Input voltage range select (VAC) | AUTO-SELECT |
| Input current max (A) | 29 / 21 |
| Phase input & frequency | 3 PH - 50/60 HZ |
| Current adjustment range (A-DC) | 20 - 400 |
| Duty cycle | 400A @ 60% |
| Duty cycle | 310A @ 100% |
| Full load efficiency | 89% |
| Required input power (Network) | 28 KVA |
| Required input power (Generated) (full cap) | 60 KVA |
| Open circuit voltage (0CV) (MIG) | N/A |
| Open circuit voltage (OCV) (MNA) | 20 VDC |
| Arc safe facility (VRD) | STD |
| Protection class | IP23S |
| Working temperature (ºC) - | 10-+40 |
| Dry weight (KG) | 43 |
| Size LXWXH (cm) | 58 X 30 X 51 |
| Input circuit breaker (machine) | 40 A / 3PH |
| Input power cable black(MM2) | 4C x 4 x 3M |
| Req input power cable EXT (MM2) | 4C x 10 x 20M |
| Electrode size MM (Min/Max) | |
