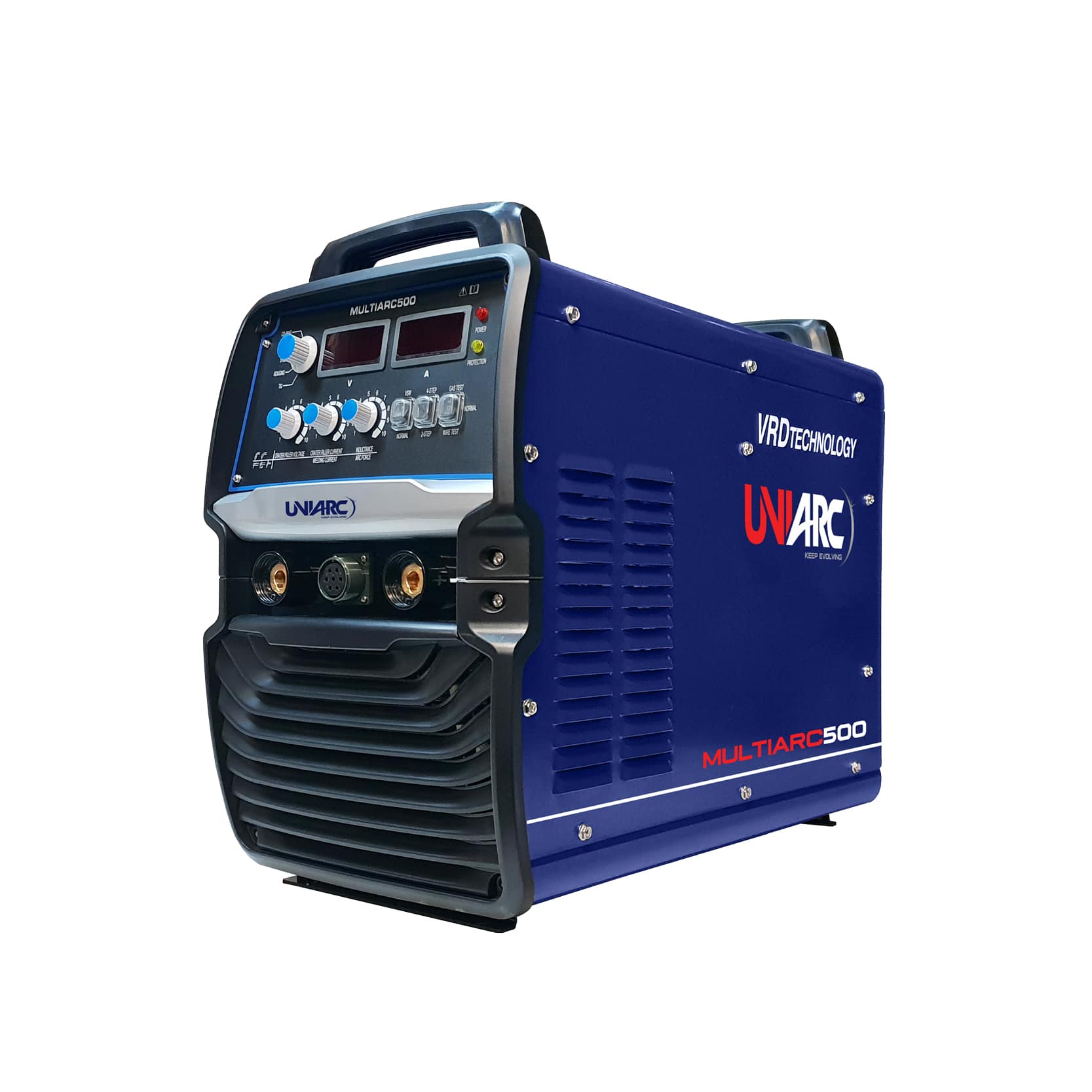

MULTI PROCESS INVERTER – MULTIARC 500

MULTIARC 500 (380/525V)
Product code: 00041836

The MULTIARC 500 is a true multiprocess workhorse, designed for working in harsh environments. This unit offers SMAW, GTAW, GMAW, FCAW, as well as gouging. Arc controls include hotstart, arcforce and inductance coupled with simplistic controls. The UNIFEED 24 Wirefeeder utilises a 4 roll drive system with gaspurge and cold wirefeed controls. Both wire feed speed and volts can be adjusted from the wirefeeder allowing full control of your weld parameter when working away from your power source. The MULTIARC 500 offers arcsafe and multiple input voltage (auto select), as well as a 3 year parts and labour warranty and is generator compatible.

Interested in a Product?

• DC output
• Generator compatible
• Arc safe
• Digital display
• IGBT technology
• Capable of long-distance welding (up to 50m)
• 2 Step / 4 Step functionality
• Auto voltage select
• Hot start, Arc safe and inductance functionality
• Full parts and service back up
• Suitcase feeder (voltage sensing) enabled for site applications

• Mining
• Construction
• Fabrication
• Shipbuilding
• Petrochemical

SMAW / GTAW / GMAW / FCAW-SS / FCAW-GS / GOUGING

MULTIARC 500
Welding type SMAW/GTAW/GMAW/FCAW/GOUGING
Input voltage range (VAC) 380/525
Input voltage range select (VAC) Auto -Select
Input current max (A) 46A @380V

33A @525V

Phase input & frequency 3 PH - 50/60 HZ
Current adjustment range (A-DC) 60 – 500A
Duty cycle 60% @ 500Amp
Full load efficiency 89%
Open circuit voltage (OCV) (VRD) 15 VDC
Open circuit voltage (OCV) (MAX) 90 VDC
Arc-safe facility (VRD) STD
Protection class IP23
Working temperature (ºC) -10-+40
Dry weight (KG) 50
Size 673 x 350 x 575
Electrode size MM (MIN/MAX) 0.8-2.4
