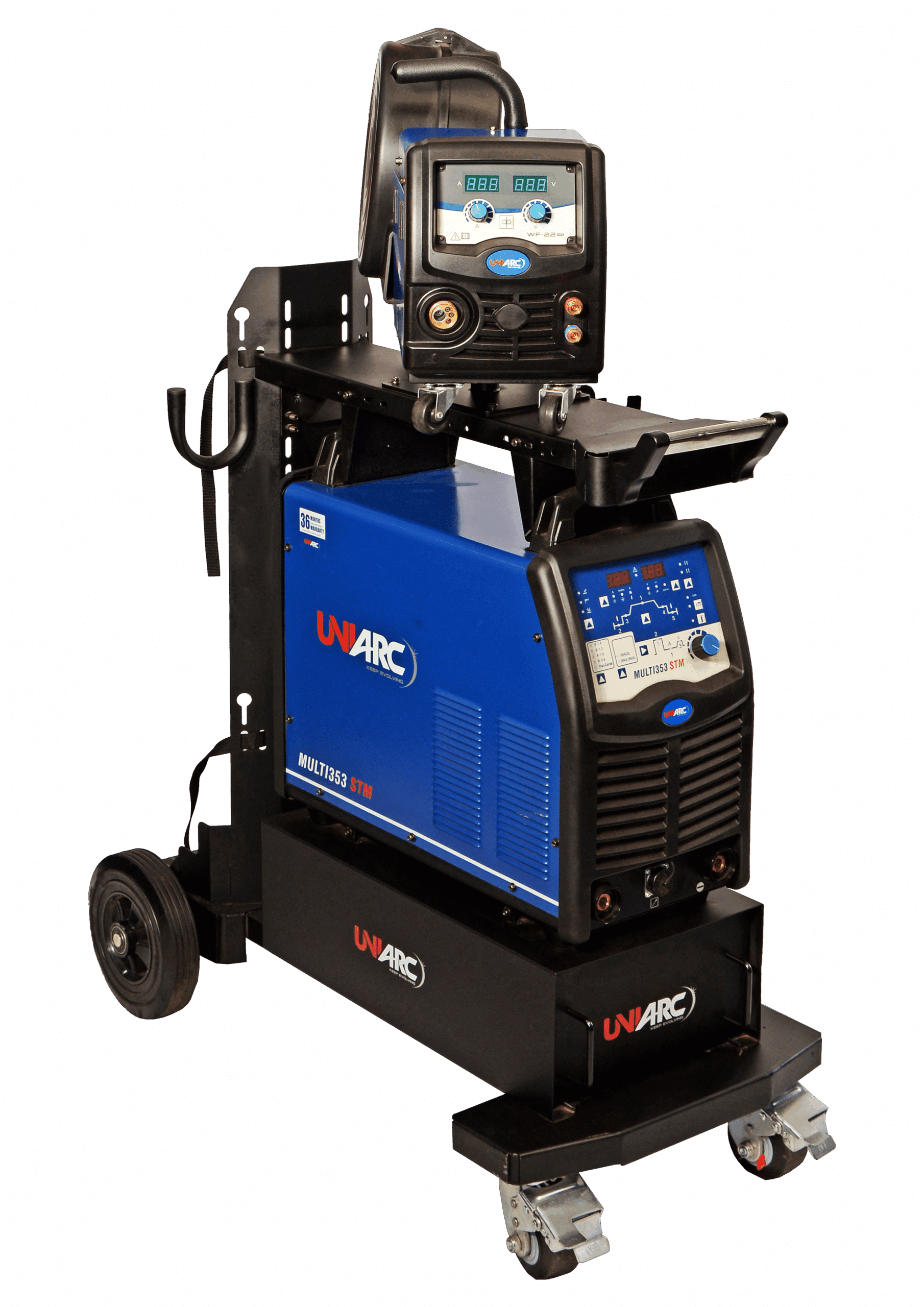

The MULTI 353 STM is a true multiprocessor workhorse, designed for working in harsh environments. This unit offers SMAW, GTAW, GMAW, FCAW. Arc controls include hot start, arc force and inductance coupled with simplistic controls. The wire feeder utilizes a 4-roll drive system with gas purge and cold wirefeed controls. Both wire feed speed and volts can be adjusted from the wire feeder allowing full control of your weld parameter when working away from your power source. The MULTI 353 STM offers arc safe, as well as a 3-year parts and labor warranty.
• DC output
• Arc safe
• Digital display on wire feeder and powerpack
• IGBT technology
• Full parts and service backup
• 2 Step / 4 Step functionality
• Hotstart, arc force, inductance functionality, weld start and crater fill capabilities
• 45% duty cycle @ 350 AMPS @ 40 Degrees Celsius
• Full synergic capabilities
• 20 memory slots to save weld settings
• 4 Roll drive system
• Construction
• Fabrication
• Shipbuilding
• Petrochemical
• Sheet metals
SMAW / GTAW / GMAW / FCAW-GS
| MULTI 353 STM | |
| Welding type | SMAW/GTAW/GMAW/GOUGING |
| Phase input &frequency | 3 PH - 50/60 HZ |
| Input voltage range (VAC) | AC415V ±15% AC380V ±15% |
| Input current max (A) | 19.4 21.2 |
| Rated power supply capacity (KVW) | 14 14 |
| Recommended fuse capacity (A) | 40 60 |
| MNA welding current range | 20 – 350 |
| Mig current range (A) | 50 – 350 |
| Mig voltage range (V) | 15 – 38 |
| Wire feed speed range (M/Min) | 65 |
| Electrode diameter applicable (MM) | 1.5 – 18% |
| Rated duty cycle | 0.8 / 1.0 / 1.2 |
| Efficiency (%) | 85 |
| Power factor | 0.93 |
| Protection class | IP21S |
| Insulation class | F |
| Standard | IEC 60974-1 |
| Dry weight | 39 |
| Sizw (MM) L X W X H | 636 X 292 X 558 |
