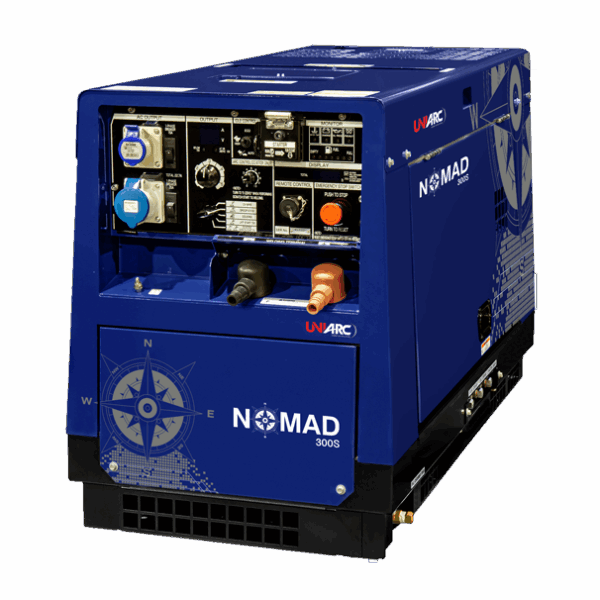

ENGINE DRIVEN WELDING – NOMAD300s

NOMAD 300s CC/CV MULTIPROCESS
Product code: 00041841

The NOMAD 300S is built for the construction, pipeline, and mining industry. This 320Amp unit offers superior weld performance on various weld processes combined with single phase auxiliary capabilities. This unit is built with production, cost of ownership and ease of use in mind. Offering various processes with full arc controls, combined with smart engine controls, this unit offers unrivaled performance and fuel efficiency. This unit also offers industry leading sound levels at only 65Decibels @7m making it ideal for noise sensitive areas as well as crew communications.

Interested in a Product?

• Full CC/CV capabilities
• 2 X 230V auxiliary ports
• Built in VRD for mining regulations
• Built in water, diesel& oil trap eliminating the use of drip trays
• 3-year warranty parts& labor on welding end
• Standard international KUBOTA warranty on engine
• Remote control capability on GTAW & SMAW mode
• Suitcase wire feeder compatible for FLUXCORED & GMAW process
• Easy access from both sides of the machine for maintenance and service
• Battery cut off switch
• Intuitive control panel with digital display

• Pipe Line
• Construction
• Civil Engineering
• Rental
• Offshore
• Fabrication
• Mining
• Rail Road
• Service Truck
• Maintenance and Repair

SMAW / Lift GTAW / FCAW / Pipe mode / Scratch TIG / GMAW

WELDING DC GENERATOR
Generating methodPermanent magnet rotating field
Rated speed (MIN-1 )3000
No load voltage (V)MAX85
CC DroopSingle
Rated current (A)270
Rated voltage (V)30.8
Duty cycle (%)100
Current adj. range (A)30-320
Welding rod capacity (MM)Φ 2.0-6.0
Gouging rod (MM)Φ 3.2-6.5
CVSingle
Rated current (A)270
Rated voltage (V)26.5
Duty cycle (%)100
Current adj. range (A)30-320
Voltage adj. range (V)14-31
Welding wire0.6-2.0
AC GENERATOR
Single & Dual
Rated frequency (HZ)50 I 60
Rated speed (MIN-1)3000
Phase1 PHASE
Rated voltage (V)220
Rated current (A)TOTAL 22.7 (2 RECEPTACLES)
Rated output (KVA)5.0
Power factor F1.0
RatingContinuous
DIMENSIONS
Single & Dual
Overall dimensions (MM)(L)1363 X (W)635 X (H)823
Dry weight (KG)330
Net weight371



Model Engine type DISPLACEMENT (L)RATED OUTPUT (KW/MIN-1)FUEL TANK CAPACITY (L)
KUBOTA D722-E3BVERTICAL, WATER-COOLED, 3 CYLINDER DIESEL0.719L15.0/3000 17.6/360037L
