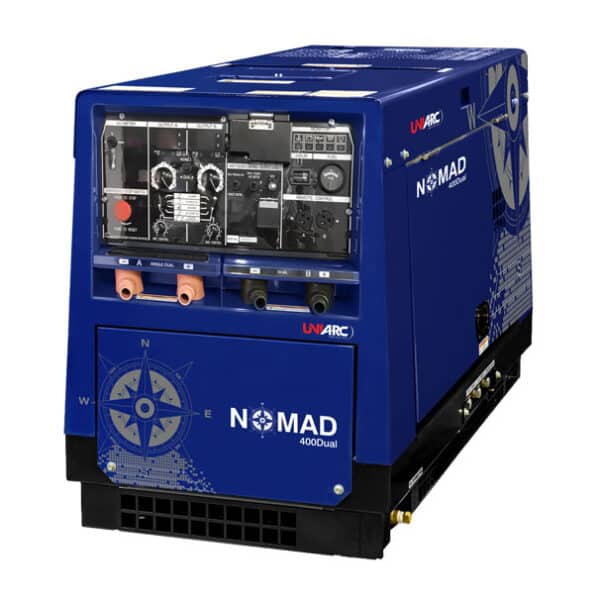

The Nomad 400 Dual is built for the construction, pipeline, and mining industry, the Nomad 400 Dual offers superior weld performance on various weld processes combined with single and three phase auxiliary capabilities. This unit is built with production, cost of ownership and ease of use in mind. Offering dual welding arcs on various processes with full arc controls, combined with smart engine controls, this unit offers unrivaled performance and fuel efficiency. This unit also offers industry leading sound levels at only 65Decibels
@7m making it ideal for noise sensitive areas as well as crew communications.
• Weld 2 Processes/Arcs simultaneously
• Full CC/CV capabilities
• 220V & 380V auxiliary ports
• Built in VRD for mining regulations
• Built in water, diesel & oil trap eliminating the use of drip trays
• Remote control for both arcs on GTAW & SMAW mode
• Suitcase wire feeder compatible for FLUXCORED & GMAW processes
• Easy access from both sides of the machine for maintenance and service
• Battery cut off switch
• Intuitive control panel with digital display
• This unit also offers a brush-less alternator reducing yearly maintancne cost
• 3-year parts and labor warranty
• 1-year standard warranty on engine by KUBOTA subject to their warranty conditions
• Pipe Line
• Construction
• Civil Engineering
• Rental
• Offshore
• Fabrication
• Mining
• Rail Road
• Service Truck
• Maintenance and Repair
SMAW / Lift GTAW / FCAW / Gouging / Pipe mode / Scratch TIG / GMAW
| Nomad 400 Dual | Single | Dual | |||
|
Output | CV | Rated current | (A) | 330/340 | 180/200 |
| Rated voltage | (V) | 31.5/32.0 | 20.0/21.0 | ||
| Rated duty cycle | (%) | 100 | 100 | ||
| Voltage adjusting range | (V) | 14.0-34.5 / 14.0-35.0 | 14.0-21.0 / 14.0-23.5 | ||
| Wire size | (MM) | Φ0.6-Φ2.0 | Φ0.6-Φ1.6 | ||
| CC Drop | Rated current | (A) | 370 / 390 | 180 / 200 | |
| Rated voltage | (V) | 34.8 / 35.6 | 27.2 / 28.0 | ||
| Rated duty cycle | (%) | 60 | 100 | ||
| Current adjusting range | (A) | 30-390/30-400 | 30-200/30-210 | ||
| Stick rod size | (MM) | Φ2.0-Φ8.0 | Φ2.0-Φ4.0 | ||
| Gouging rod | (MM) | Φ3.2-Φ8.0 | Φ3.2-Φ5.0 | ||
| Rated RPM | (MM-1) | 3000 / 3600 | |||
| OCV | (V) | MAX 85 | |||
| WELDING DC GENERATOR | AC GENERATOR | |||
| CC Droop | Single | Dual | Single & dual | |
| Rated current (A) Rated voltage (V) Duty cycle (%) Current adj. range (A) Welding rod capacity (MM) Gouging rod (MM) Rated current (A) Rated voltage (V) Duty cycle (%) Current adj. range(A) Wire size (MM) | 390 35.6 60 95-400 Φ 2.6-8.0
Φ 3.2-8.0 350 32.5 100 14-35 0.6-2.0 | 200 28.0 100 50-210 Φ2.0-4.0
Φ 3.2-5.0 200 21.0 100 14-23.5 0.6-1.6 | Rated frequency (HZ) Rated speed (MIN-1) Phase 3-phase Rated output (KVA) Rated voltage (V) Power factor Rated current (A) Rated voltage (V) Duty cycle (%) 100 Current adj. range (A) Wire size (MM) | 50 3000/3600
12kva x1 socket 415 0.8 200 21.0 100 14-23.5 0.6 -1.6 |
| DIMENSIONS | |
| Single & dual | |
| Overall dimensions (MM) Dry weight (KG) No load voltage (OCV) | 1434 (L) X 700 (W) X 848 (H) 480 Max 85V |
| Model | Engine type | DISPLACEMENT (L) | RATED OUTPUT (KW/MIN-1) | FUEL TANK CAPACITY (L) |
| KUBOTA D902 | VERTICAL, WATER-COOLED, 3 CYLINDER DIESEL | 0.719L | 15.0/3000 17.6/3600 | 37L |
