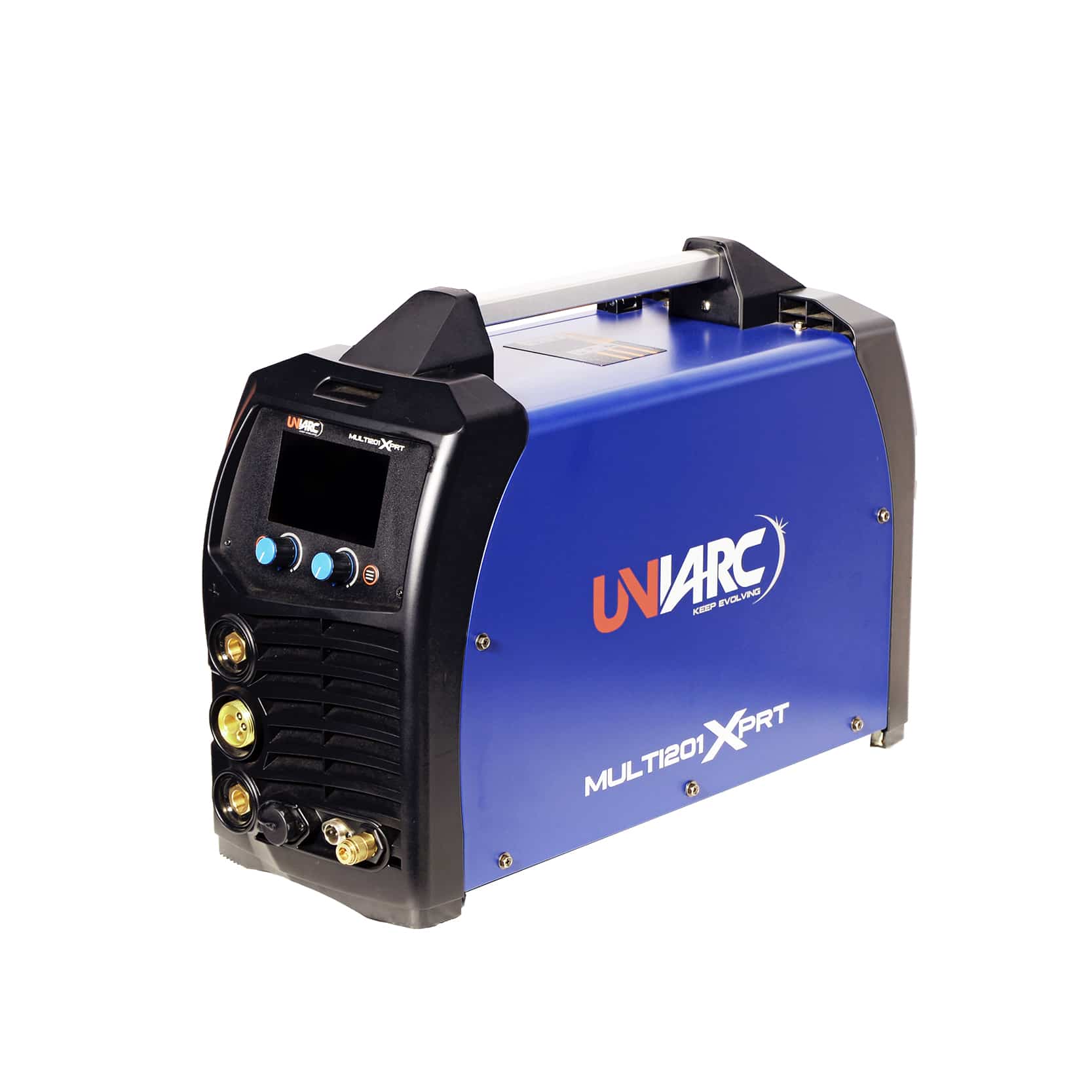

The Multi201 XPRT packs the latest welding technologies into a compact 220V single phase system. This is not a DIY machine! This is a serious industrial unit offering great flexibility with all the arc controls demanded by Industry professionals. With multiple welding processes included. Material that can be welded includes Mild steel, stainless steel, Aluminum, Silicon Bronze, Titanium, Nickel alloys.
Key feature to set your weld settings by selecting the type of material, thickness, weld process, welding gas mixture, and the machine sets the rest! The LED Touch screen is not only tough but allows the welder to easily set the machine, even in low light conditions. The intuitive display supported with display graphics make this machine super easy to set. All the important information is shown on the main screen for easy access and navigation There are also 100 memory slots you can save and name your favorite weld setting with the digital keyboard for easy retrieval at a later stage. The machine is also equipped with a digital torch to allow you to set your welding parameters from your welding torch!
• Multi process
• 100 synergic weld settings for type of material to be welded
• 100 programable memory slots to save weld settings
• Led touch screen display with intuitive user interface for easy weld settings
• High frequency TIG and PULSED TOG for the most demanding stainless and mils steel applications
• Digital MIG torch to set AMPS and VOLTS on the fly
• Digita TIG torch with start/stop as well as current adjustment to set weld current on the fly (optional) to set weld current on the fly (optional)
• Foot control for TIG operation (optional)
• Dedicated ARC controls for each process
• Glick functions for MIG and TIG process to manage heat input on the fly switch between a high and a low current setting by a press of the trigger
• Spool gun compatible for aluminum MIG welding
• 4 roll wire feeder for accurate wire feeding
• Polarity switch for welding flux-cored gas less wires
• Thermal overload protection
• IP23S enclosure rating
• Generator compatible: MIN 11 KVA with voltage stabilizer
• 1KG and 5KG spool sizes
• Maintenance and repair
• Fabrication
• Automotive
• Agriculture
• Process equipment
• Sheetmetal fabrication
GMAW (MIG):
Conventional GMAW
Pulse GMAW
Double pulse GMAW
DC GTAW (TIG):
Lift arc GTAW
High Frequency GTAW
Pulse high frequency GTAW
SMAW (STICK/MMA):
Conventional SMAW
Synergic SMAW for rutile, stainless steel,
basic, and cellulosic electrodes
FCAW ( Flux-cored):
Gasless FCAW
Gas assisted FCAW
| Multi 201 Xprt | ||
| Input | Input power | AC230V single-phase 50/60Hz |
| Rated input capacity | 5.83KVA | |
| Power factor | 0.65 | |
| Rated efficiency | 82% | |
| Rated no-load voltage | 77V | |
| Rated maximum output | MMA 180A/27.2V
TIG 200A/18V MIG 200A/24V |
|
| Rated duty | 25%@AC230V Single-phase | |
| Welding current | MMA 20A/20.8V~180A/27.2V
TIG 5A/10.2V~200A/18V MIG/pulsed MIG 20A/16V~200A/24V |
|
| Ambient | Operation temperature | -10~+40° |
| Storage temperature | -25~+55° | |
| Protection class | IP23S | |
| Insulation class | H | |
| Cooling method | Air cooling | |
| Dimension of bare welding source | 605mm*400mm*230mm | |
| Dimension of packaged welding source | 730mm*585mm*330*mm | |
| Weight of bare welding source | 17.0kg | |
| Weight of complete welding source | 19.0kg | |
