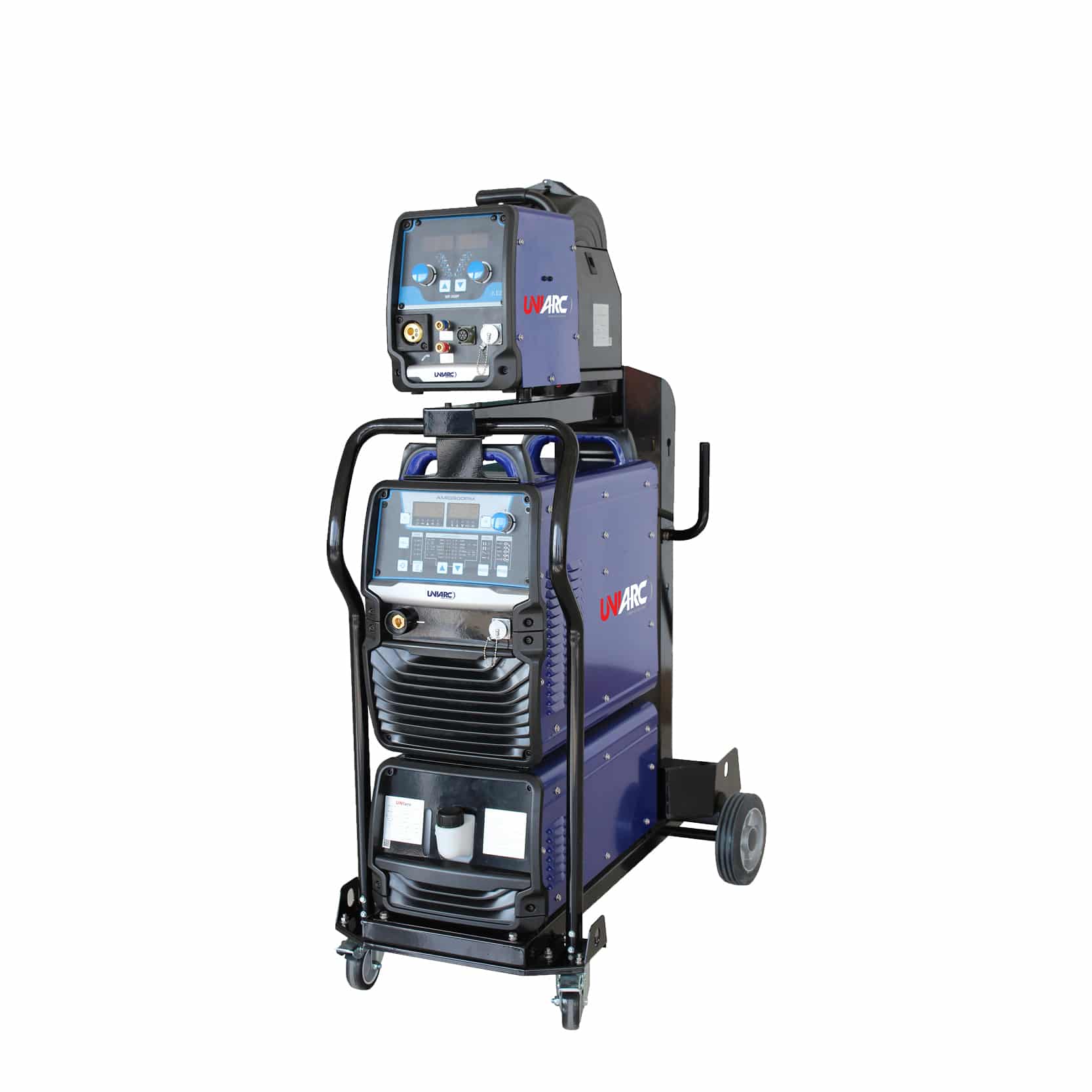

The AMIG 500 PM a fully digital pulse mig system designed for the most demanding welding applications. It provides exceptional arc and weld puddle control, ensuring optimum processes efficiency and exceptional weld quality.
• Minimal spatter generation and excellent bead appearance
• Embedded welding database, which provides intelligent welding parameters widely used for selection of various welding materials and plate thickness
• Can be used for both automated or manual application
• 100 programable memory slots
• Automotive
• Fabrication
• Ship-building
• Solar
• Petrochemical
| AMIG 500 PM | |
| Rated input voltage/Frequency (HZ) | 3 PHASE , 380V±10%, 50 /60HZ |
| Rated input capacity (KVA) | 23.4 |
| Rated input current(A) | 36.1 |
| Duty cycle | 60%@500A |
| OCV (V) | Around 106 |
| Output current range (A) | 25-500 |
| Output current range (V) | 14-50 |
| Trigger mode | 2/4t,spot,repeat |
| Wire size | 0.8,1.0,1.2,1.6 |
| Double pulse frequency (HZ) | 0.5-5 |
| Job channels | 100 |
| Protection class | IP23 |
| Dimension (MM) | 655 X 324 X546 |
| Weight (MM) | 53/116.3 |
