RAIL TITAN | MODULAR TIG-MIG-MAG RAIL TRACTOR

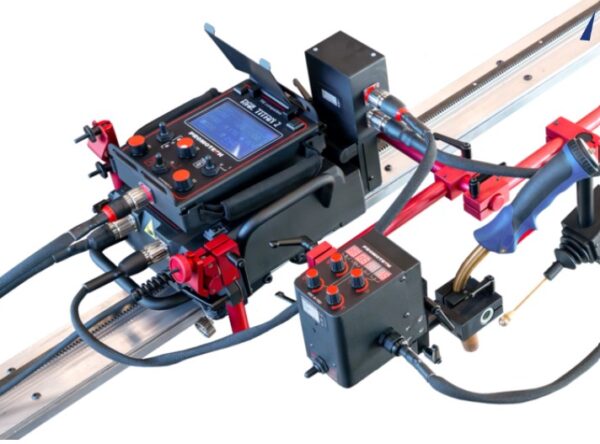

Rail Titan 2 is fully modular mechanized tractor that can be custom configured for TIG-MIG-MAG welding, oxy-fuel or plasma cutting and gouging applications on flat or curved plate, tube and pipe.
Linear torch oscillator produces straight, triangle, trapezoid and square weld paths.
Rail Titan 2 can travel on hi-flex, semi-flexible, rigid or ring tracks that can be clamped to ferrous materials with magnetic units and to non-ferrous materials by means of vacuum track system incl. vacuum pump and vacuum units.

Interested in a Product?

Suitable for TIG welding (HF resistant)
Mirror Switch function
Robust design with die-cast aluminum housing
Ergonomic remote control pendant with simple and easy-to-find control knobs makes adjustments possible without lifting the operator’s welding hood
Programmable path of stitch welds
Suitable for a variety of circumferential and irregular surface applications down to min. radius of 100 mm (4”)
- Ring tracks on diameters from 200 mm (8”) OD up to 3 m (10 ft) OD
- Hi-Flex tracks on diameters from 1500 mm (59”) OD upwards
- Semi-flexible tracks can be flexed to a minimum radius of 5 m (16 ft) without permanent deformation

WELDING MANIPULATORS (COLUMN AND BOOM)
Column/mm Boom/mm		1500	2000	3000	4000	5000	6000	7000	Manual Type	Rotating mechanism Electric type	Walking Trolley
Micro Duty	1500- 2000
Light duty	2000 3000 4000
Heavy duty	4000 4000 5000 6000 7000

Features

Suitable for TIG welding (HF resistant)
Mirror Switch function
Robust design with die-cast aluminum housing
Ergonomic remote control pendant with simple and easy-to-find control knobs makes adjustments possible without lifting the operator’s welding hood
Programmable path of stitch welds
Suitable for a variety of circumferential and irregular surface applications down to min. radius of 100 mm (4”)
- Ring tracks on diameters from 200 mm (8”) OD up to 3 m (10 ft) OD
- Hi-Flex tracks on diameters from 1500 mm (59”) OD upwards
- Semi-flexible tracks can be flexed to a minimum radius of 5 m (16 ft) without permanent deformation

Applications

Process

Specifications

Consumables
