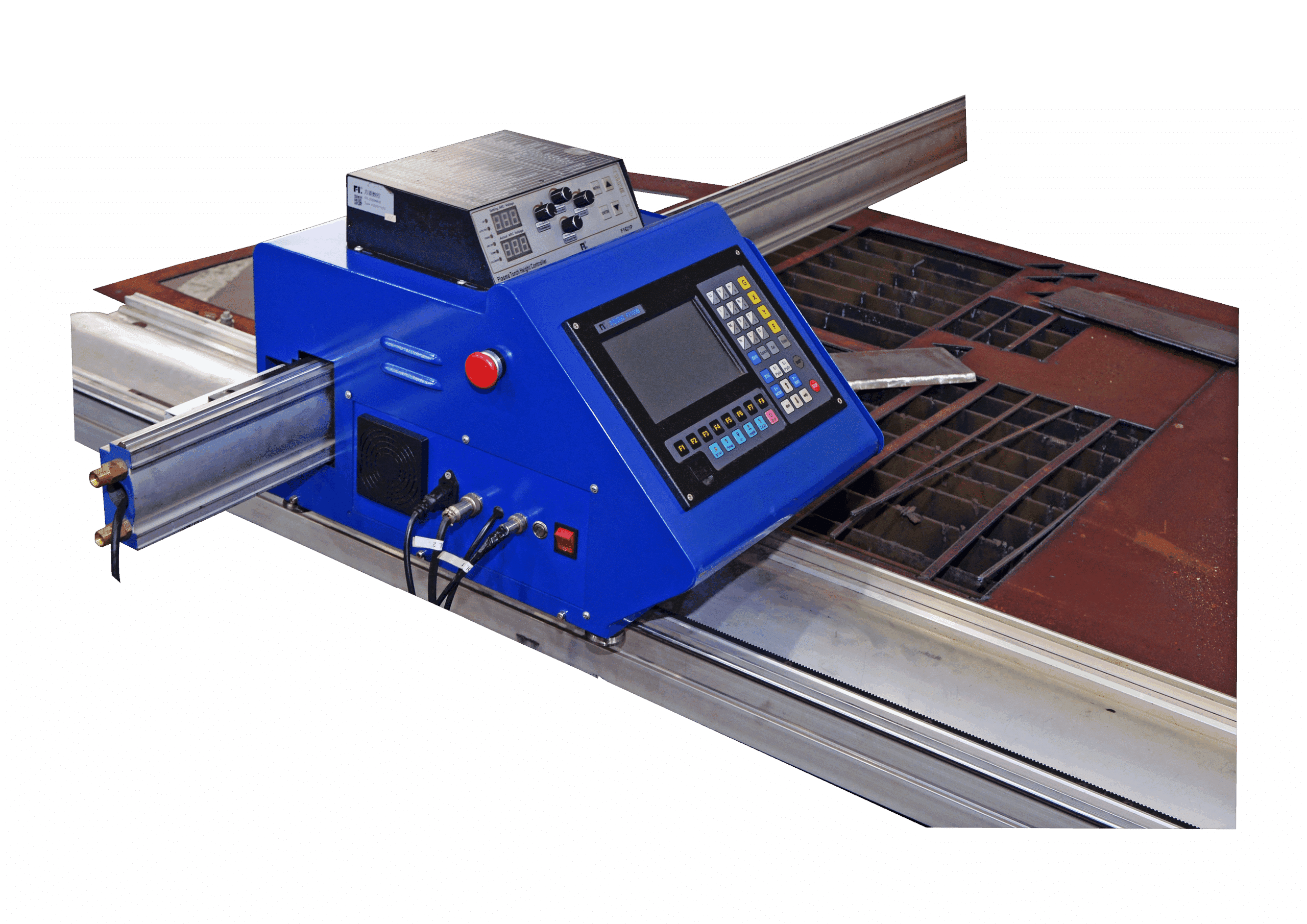

The UNIARC XCUT Roughneck is designed for accurate cnc cutting using either Plasma or Oxyfuel cutting. Whether you are cutting in the workshop or out in the field the Roughneck is designed to be portable for on the job cutting. Alternatively, you can mount the Roughneck on an open plasma table or water table for easy plate loading in the workshop. The easy-to-use interface makes it easy to design or upload your cutting files whilst the nesting software allows you to get maximum usability of your plate reducing material wastage.
| X-CUT Roughneck | |
| INPUT VOLTAGE
POWER SUPPLY FREQUENCY RATED POWER EFFECTIVE CUTTING WIDTH (MM) (X AXIS) EFFECTIVE CUTTING LENGTH (MM) (Y AXIS) (Could be extended as per customer demand) PROCESSES CUTTING MODE MOTOR STYLE DRIVE MODE GAS CUTTING THICKNESS PLASMA CUTTING THICKNESS CUTTING SPEED WORKING PRECISION CUTTING GAS GAS PRESSURE
TORCH HEIGHT CONTROL MODE DISPLAY SCREEN NESTING SOFTWARE |
230V 50/60HZ
50HZ 500-1000W 1500 3000
PLASMA CUTTING, OXYFUEL CUTTING GAS / PLASMA CUTTING STEP MOTOR SINGLE-SIDE 6-100MM 0.5MM - 40MM DEPENDING ON PLASMA POWERSOURCE 10-3000MM/MIN ±0.2MM/METER OXYGEN + ACETYLENE/ PROPANE OXYGEN: ≤1MPA FUEL: ≤0.1MPA MOTOR DRIVE CONTROL LCD COLOR SCREEN FASTCAM |
