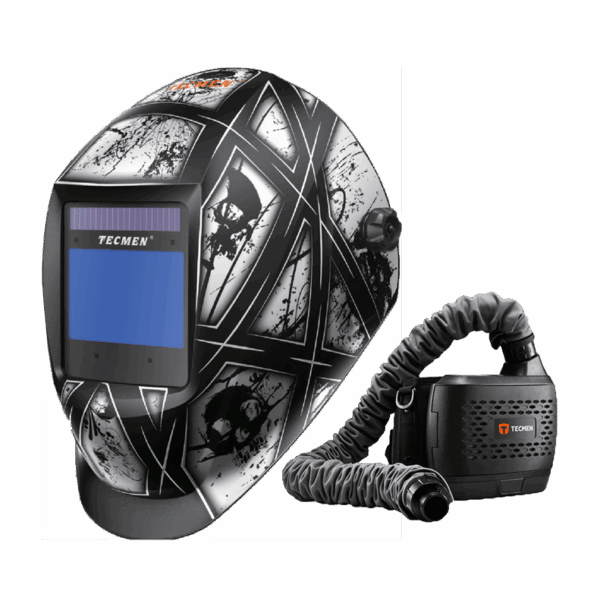

Experience comprehensive protection by integrating our advanced 900FP-V auto-darkening helmet with the PAPR system. Shade 5 lens on both sides, flip-up design plus lightweight design make it the right solution to long-time work.
Eye and facial protection - Protect welders from arc radiation and spatter.
Multiple working modes - Suitable for welding/cutting/ grinding.
Raspatory protection - Filter efficiency ≥ 99.97%, preventing inhalation of dust, pollutants, fine particles and other contaminants.
Auto-alarm system - Flashing indicator, bleeping sound, together with vibrating blower to ensure safety.
Real-time display indicator - Filter status/airflow rate/battery capacity indicator, real-time monitoring and display.
Intelligent air supply - Respirator will self-adjust the flow rate according to the blockage of the filter automatically.
Rechargeable LI-ION BATTERY- Rechargeable battery for longer lifetime. Fast-charging option makes changing only 1 hour.
| RESPIRATOR SPECIFICATIONS | |
| Airfl ow Rate
Battery Type
Battery Duration
Battery Charge Time
Battery Life Filter Efficiency Alarms Operating Temp. Storing Temp. Operating Relative Humidity Storage Relative Humidity Weight (Blower Unit+Battery) |
Low speed: 170+lpm (6+cfm)
High speed: 210+lpm (7.4+cfm) Rechargeable Li-ion Battery 9 hours (Standard battery, 170+lpm) 5 - 6 hours (Standard battery, 210+lpm) 15 hours (Extended battery, 170+lpm) 9 hours (Extended battery, 210+lpm) 1 hours (Standard battery) 2 hours (Extended battery) ≥ 500 charges ≥99.97% Visible, Audible and Vibrate -5 °C ~ +55 °C (23 °F ~ 131 °F) -10 °C ~ +55 °C (14 °F ~ 131 °F) <90% <85% 1020 g
|
| ADF SPECIFICATIONS | |
| Optical Class
Viewing Area Cartridge Size Arc Sensor Light State Dark State Shade Control Power On / Off Sensitivity Control UV / IR Protection Power Supply
Switching Time Delay (Dark to Light) Low Amperage TIG Rated Grinding Low Battery Indicator Battery Capacity Test Operating Temp. - Storing Temp. Helmet Material
|
1 / 1 / 1 / 1
97 x 62 mm (3.62" x 2.44") 133 x 114 x 9 mm (5.25" x 4.50" x 0.35") 4 DIN 3.5 Variable Shade 5 ~ 8 / 9 ~ 13 Internal, Variable Shade Automatic On / Off Low ~ High, by infi nitely dial knob Up to Shade DIN16 at all times Solar cell. Battery replaceable, 2 × CR2450 lithium battery 1/25,000 s. from Light to Dark 0.1 ~ 1.0 s by infi nitely dial knob ≥ 2 amps (DC); ≥ 2 amps (AC) Yes Yes Yes 10 °C ~ +55 °C (14 °F ~ 131 °F) -20 °C ~ +70 °C (- 4 °F ~ 158 °F) High Impact Resistance Nylon
|
Eye and facial protection - Protect welders from arc radiation and spatter.
Multiple working modes - Suitable for welding/cutting/ grinding.
Raspatory protection - Filter efficiency ≥ 99.97%, preventing inhalation of dust, pollutants, fine particles and other contaminants.
Auto-alarm system - Flashing indicator, bleeping sound, together with vibrating blower to ensure safety.
Real-time display indicator - Filter status/airflow rate/battery capacity indicator, real-time monitoring and display.
Intelligent air supply - Respirator will self-adjust the flow rate according to the blockage of the filter automatically.
Rechargeable LI-ION BATTERY- Rechargeable battery for longer lifetime. Fast-charging option makes changing only 1 hour.
