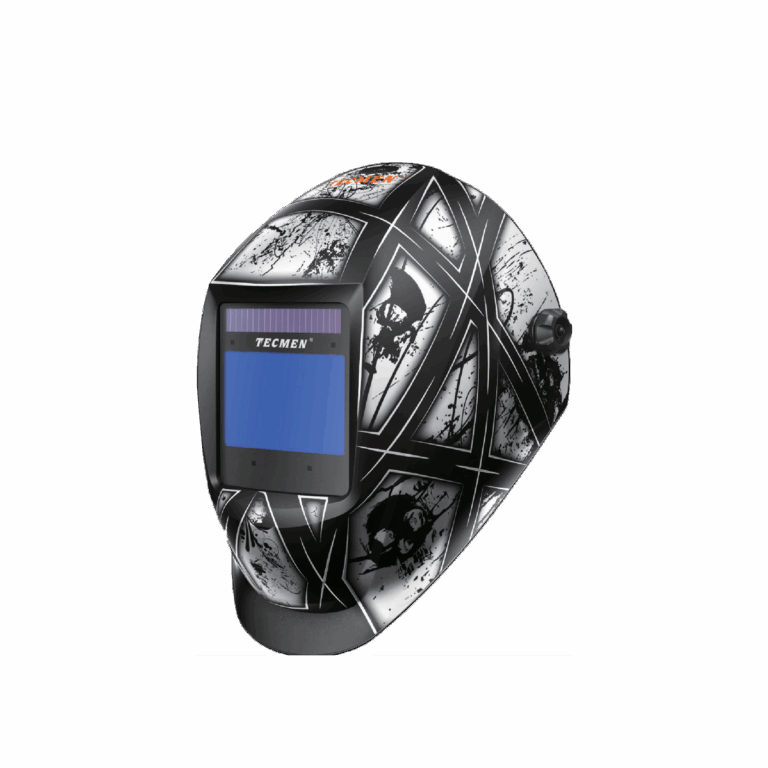

Experience comprehensive protection by integrating our advanced TM1000 auto-darkening helmet with the PAPR system. Shade 5 lens on both sides, flip-up design plus lightweight design make it the right solution to long-time work.
Flip-up design - Easy lift up for grinding function, suiting welding / cutting / grinding mode.
Large view for grinding - 20 x 12 cm area, large and curved transparent grinding anti-fog lens.
Superior lens-technology - Highest optical class 1 / 1 / 1 / 1, offering best vision experience and welding efficiency.
Save-power function- Solar cell combined with replaceable battery, greatly increase service life.
High impact resistance - High tenacity shell material, passing EN175 B and ANSI Z87 + impact test under highest level.
Pivot headgear - Adjustable pivot design, well-balanced design, maximum comfort level, lock function in upright state.
Side window - Shade 5 lens on both sides, enhance surrounding vision, safer and securer.
| ADF SPECIFICATIONS | |
| OPTICAL CLASS
VIEWING AREA CARTRIDGE SIZE ARC SENSOR LIGHT STATE GRIND STATE CUTTING SHADE WELDING SHADE SHADE CONTROL POWER ON / OFF SENSITIVITY CONTROL UV / IR PROTECTION POWER SUPPLY BATTERY |
1 / 1 / 1 / 1
107 X 75 MM (4.21" X 2.95") 156 X 123 X 33 MM (6.14" X 4.84" X 1.30") 4 DIN 4 DIN 4 SHADE NO. FROM 5 TO 8 SHADE NO. FROM 9 TO 13 INTERNAL, DIGITAL DISPLAY CONTROL AUTOMATIC ON / OFF LOW ~ HIGH, DIGITAL DISPLAY CONTROL UP TO SHADE DIN16 AT ALL TIMES SOLAR CELL. BATTERY REPLACEABLE, 2 X CR2450 LITHIUM |
| ADF SPECIFICATIONS | |
| SWITCHING TIME
GRINDING DELAY (DARK TO LIGHT) LOW AMPERAGE TIG RATED OPERATING TEMP. STORING TEMP. HELMET MATERIAL APPLICATION RANGE
|
1/25,000 S. FROM LIGHT TO DARK
YES 0.1 ~ 1.0 S BY INFINITELY DIAL KNOB ≥ 2 AMPS (DC); ≥ 2 AMPS (AC) -10 °C ~ +55 °C (14 °F ~ 131 °F) -20 °C ~ +70 °C (- 4 °F ~ 158 °F) HIGH IMPACT RESISTANCE NYLON STICK WELDING (SMAW); TIG DC∾ TIG PULSE DC; TIG PULSE AC; MIG/MAG/CO2; MIG/MAG PULSE; PLASMA ARC CUTTING (PAC); PLASMA ARC WELDING (PAW); AIR CARBON ARC CUTTING (CAC-A); OXYFUEL GAS WELDING (OFW); OXYGEN CUTTING (QC); GRINDING
|
Flip-up design - Easy lift up for grinding function, suiting welding / cutting / grinding mode.
Large view for grinding - 20 x 12 cm area, large and curved transparent grinding anti-fog lens.
Superior lens-technology - Highest optical class 1 / 1 / 1 / 1, offering best vision experience and welding efficiency.
Save-power function- Solar cell combined with replaceable battery, greatly increase service life.
High impact resistance - High tenacity shell material, passing EN175 B and ANSI Z87 + impact test under highest level.
Pivot headgear - Adjustable pivot design, well-balanced design, maximum comfort level, lock function in upright state.
Side window - Shade 5 lens on both sides, enhance surrounding vision, safer and securer.
