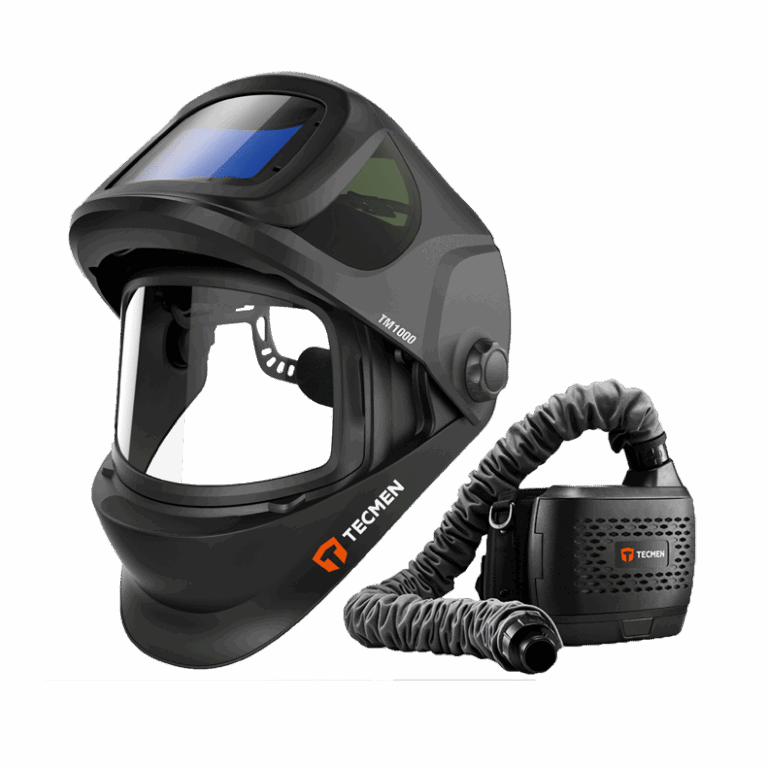

With advanced headgear design, the iWELD series greatly reduce eye/head/neck fatigue. Options available for different shade control and viewing area.
Flip-up design - Easy lift up for grinding function, suiting welding / cutting / grinding mode.
Large view for grinding - 20 x 12 cm area, large and curved transparent grinding anti-fog lens.
Superior lens-technology - Highest optical class 1 / 1 / 1 / 1, offering best vision experience and welding efficiency.
Save-power function- Solar cell combined with replaceable battery, greatly increase service life.
High impact resistance - High tenacity shell material, passing EN175 B and ANSI Z87 + impact test under highest level.
Pivot headgear - Adjustable pivot design, well-balanced design, maximum comfort level, lock function in upright state.
Side window - Shade 5 lens on both sides, enhance surrounding vision, safer and securer.
| ADF SPECIFICATIONS | |
| OPTICAL CLASS
VIEWING AREA CARTRIDGE SIZE ARC SENSOR LIGHT STATE DARK STATE SHADE CONTROL POWER ON / OFF SENSITIVITY CONTROL UV / IR PROTECTION
POWER SUPPLY SWITCHING TIME DELAY (DARK TO LIGHT) LOW AMPERAGE TIG RATED GRINDING LOW BATTERY INDICATOR BATTERY CAPACITY TEST OPERATING TEMP. STORING TEMP. HELMET MATERIAL APPLICATION RANGE
|
1 / 1 / 1 / 2
98 x 44 mm (3.86" x 1.73") 110 x 90 x 9 mm (4.33" x 3.54" x 0.35") 2 DIN 2.5 Variable Shade 7 ~ 13 External, Variable Shade; Automatic On / Off Low ~ High, by infinitely dial knob Up to Shade DIN16 at all times Solar cell. Battery replaceable, 2 × AAA Alkaline battery 1/25,000 s. from Light to Dark 0.1 ~ 1.0 s by infinitely dial knob ≥ 5 amps (DC); ≥ 5 amps (AC) Yes Yes Yes -10 °C ~ +55 °C (14 °F ~ 131 °F) -20 °C ~ +70 °C (- 4 °F ~ 158 °F) -20 °C ~ +70 °C (- 4 °F ~ 158 °F) High Impact Resistance Nylon Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/ CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Grinding |
Flip-up design - Easy lift up for grinding function, suiting welding / cutting / grinding mode.
Large view for grinding - 20 x 12 cm area, large and curved transparent grinding anti-fog lens.
Superior lens-technology - Highest optical class 1 / 1 / 1 / 1, offering best vision experience and welding efficiency.
Save-power function- Solar cell combined with replaceable battery, greatly increase service life.
High impact resistance - High tenacity shell material, passing EN175 B and ANSI Z87 + impact test under highest level.
Pivot headgear - Adjustable pivot design, well-balanced design, maximum comfort level, lock function in upright state.
Side window - Shade 5 lens on both sides, enhance surrounding vision, safer and securer.
