PRO 5 PB | Compact pipe beveler

PRO 5 PB

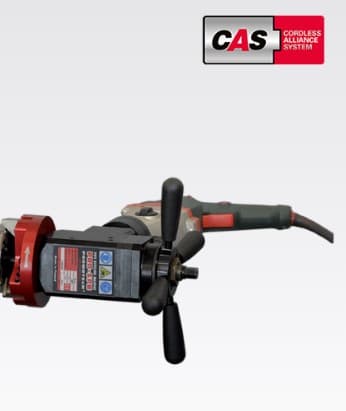

PRO-5 PB is handy and lightweight portable beveller designed to create a perfect weld prep edge on pipes made of carbon and stainless steels, aluminum alloys and copper-nickels. Available with either pneumatic motor, electric motor or battery drive the beveller can be mounted in pipe or tubing with a minimum inside diameter of 32 mm (1.25″) and bevel outside diameters up to 140 mm (5.51”). Designed with three tool holders, PRO-5 PB can simultaneously mill the OD bevel, root face and ID counterbore to create consistent wall thickness around the joint and ensure complete weld penetration. By utilizing a self-centering mandrel which mounts internally to the open end of the tube or pipe, the beveller enables highly repeatable and consistent fit-up and can be rapidly deployed from one pipe to another to reduce cycle times and improve work flow.

Interested in a Product?

machine covers a range of diameters from 32mm ID up to 140mm OD
self-centering expandable ID mounted mandrels provide quick and proper alignment to a pipe or a tube prior to machining operations
up to three tool bits can be mounted to bevel, face and counter-bore simultaneously to made weld prep operations fast and easy
standard and custom made tool bits available for creating various bevel angles for V and J-groove preparation
optional small spindle disc and ratchet wrench enable pipe machining in difficult to access and space restricted areas
can be operated with a high quality powerful pneumatic motor, top quality high torque electric motor or battery drive depending on site conditions and customer preference
end-user can choose from LiHD (High Density Lithium Ion) battery packs with capacities of 4.0 Ah, 5.5 Ah or 10.0 Ah, which have an extended lifespan, more power and longer operating time than standard lithium batteries
2 years of warranty

Features

machine covers a range of diameters from 32mm ID up to 140mm OD
self-centering expandable ID mounted mandrels provide quick and proper alignment to a pipe or a tube prior to machining operations
up to three tool bits can be mounted to bevel, face and counter-bore simultaneously to made weld prep operations fast and easy
standard and custom made tool bits available for creating various bevel angles for V and J-groove preparation
optional small spindle disc and ratchet wrench enable pipe machining in difficult to access and space restricted areas
can be operated with a high quality powerful pneumatic motor, top quality high torque electric motor or battery drive depending on site conditions and customer preference
end-user can choose from LiHD (High Density Lithium Ion) battery packs with capacities of 4.0 Ah, 5.5 Ah or 10.0 Ah, which have an extended lifespan, more power and longer operating time than standard lithium batteries
2 years of warranty
